STANDARD RGB 10MM LED CAN

The VERSA-LIGHT LED Range of products is a cost effective range of multi -purpose LED based products.

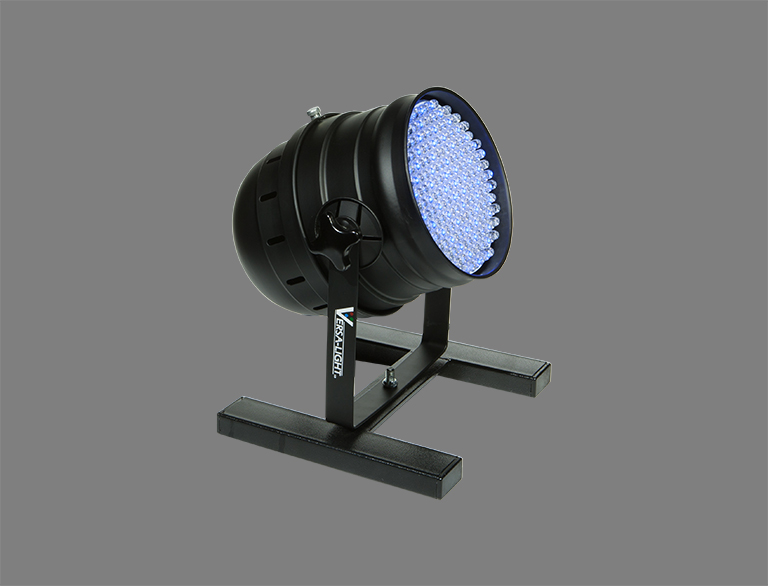

VERSA-LIGHT STANDARD RGB 10MM LED PAR 64 :
Is a multipurpose LED Can that is suited for both installation and staging applications. The Standard RGB 10mm LED Can consists of 177 x 10mm LED’s giving out a wash with smooth and even dimming to create a wide range of colours.

All from a very compact package, the unit can be used in both standalone mode or via the DMX512 Protocol and is equipped with 3 pin XLR connectors. A 7 segment display screen makes setup and control very easy. A 12 unit flight case on castors is optional for units that need to go on the road. All units come with a pre-moulded 15A South African Plug top.

APPLICATION :
ENTERTAINMENT LIGHTING - THEATRE - STAGING - TV & FILM INDUSTRY

PRODUCT SPECIFICATIONS

 LED CONFIGURATION :   177 LEDS (59 X RED, 59 X GREEN, 59 X BLUE)
 LED SOURCE :   10MM LED
 BEAM ANGLE :   15 DEG
 RAT ED LIFE :   APPROX 50 000 HOURS
 CONTROL :   DMX 512
 INPUTS/OUTPUTS :   3 PIN XLR IN AND OUT
 DMX CHANNELS :   3 OR 6 CHANNEL
 STAND ALONE OPTION :   YES
 DISPLAY :   7 SEGMENT DISPLAY
 STROBE FUNCTION :   13 FPS
 WEIGHT :   1.5KG


MOUNTING OPTIONS :

 FLOOR STANDING WITH DUCKSTAND OR TRUSS MOUNTED WITH CLAMP (NOT INCLUDED)
 OPTIONAL EXTRA’S :   12 UNIT FLIGHT CASE ON CASTORS
 SUPPLY VOLTAGE :   AC 90V - 220V 50/60HZ
 FIXTURE COLOURS :   BLACK























DOWNLOAD SPECIFICATION SHEET
